코드번호 |
Slide Length ±0.3mm |
Travel ±1.5mm |

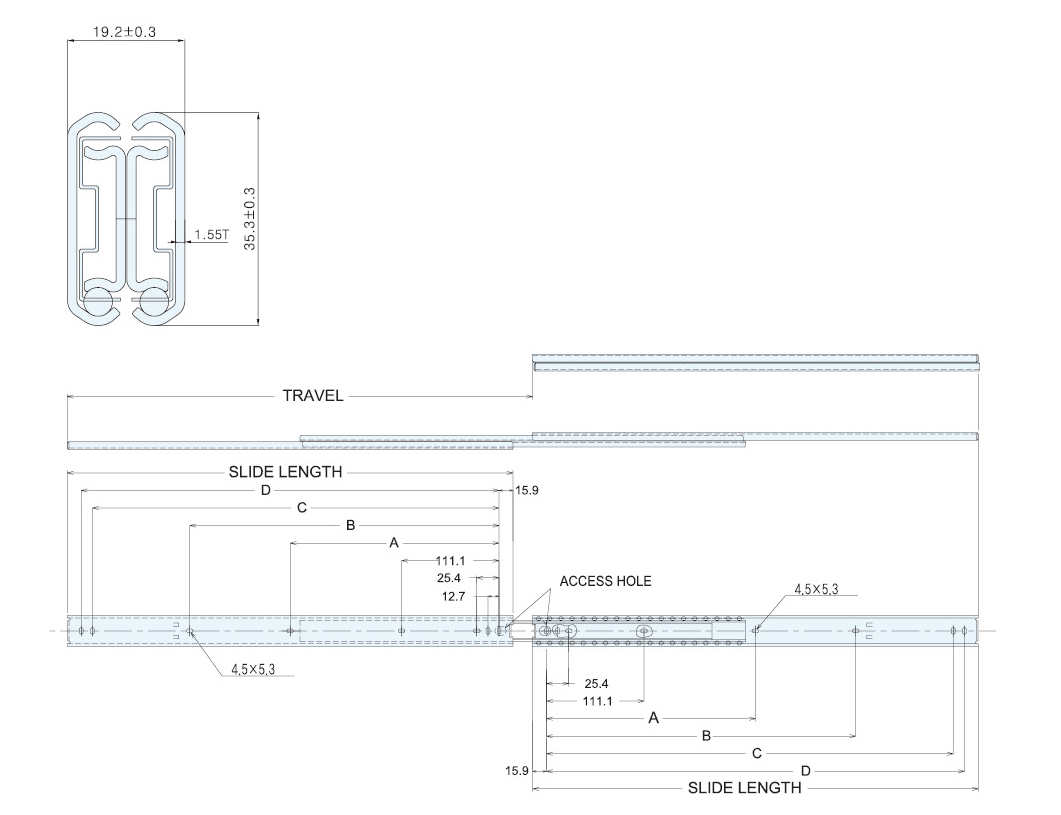

KD-253 SERIES HOLE POSITIONS(mm) |
Load Rating |
|||
A |
B |
C |
D |
|||||
KD-253-12 |
KD00217 |
304.8 |
327 |
- |
149.2 |
260.3 |
273 |
40 |
KD-253-14 |
KD00218 |
355.6 |
378 |
- |
200 |
311.1 |
323.8 |
39 |
KD-253-16 |
KD00219 |
406.4 |
429 |
- |
250.8 |
361.9 |
374.6 |
39 |
KD-253-18 |
KD00220 |
457.2 |
479 |
212.7 |
301.6 |
412.7 |
425.4 |
38 |
KD-253-20 |
KD00221 |
508 |
530 |
238.1 |
352.4 |
463.5 |
476.2 |
37 |
KD-253-22 |
KD00222 |
558.8 |
581 |
263.5 |
403.2 |
514.3 |
527 |
36 |
KD-253-24 |
KD00223 |
609.6 |
632 |
288.9 |
454 |
565.1 |
577.8 |
35 |
KD-253-26 |
KD02426 |
660.4 |
683 |
314.3 |
504.8 |
615.9 |
628.6 |
34 |
KD-253-28 |
KD00224 |
711.2 |
733 |
339.7 |
555.6 |
660.7 |
679.4 |
33 |
