PRODUCT EElectrical Products

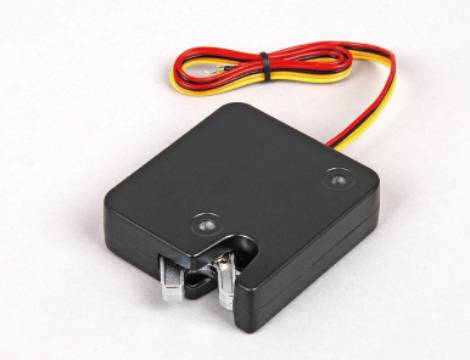

E-8 KE-201 Electric Rotary Latch
Features
  • • This latch is a frame side attachment type.
  • • Thin type.
  • • It's unlocked at power supply.
  • • Microprocessor type.
Specification
  • • Rated voltage : DC12V
  • • Operating humidity range : -20℃~70℃
  • • Materials : Zinc alloy(ZDCⅡ)
  • • Finish : Black painting
Use
  • • Distributing panel, Small box locking system, etc.

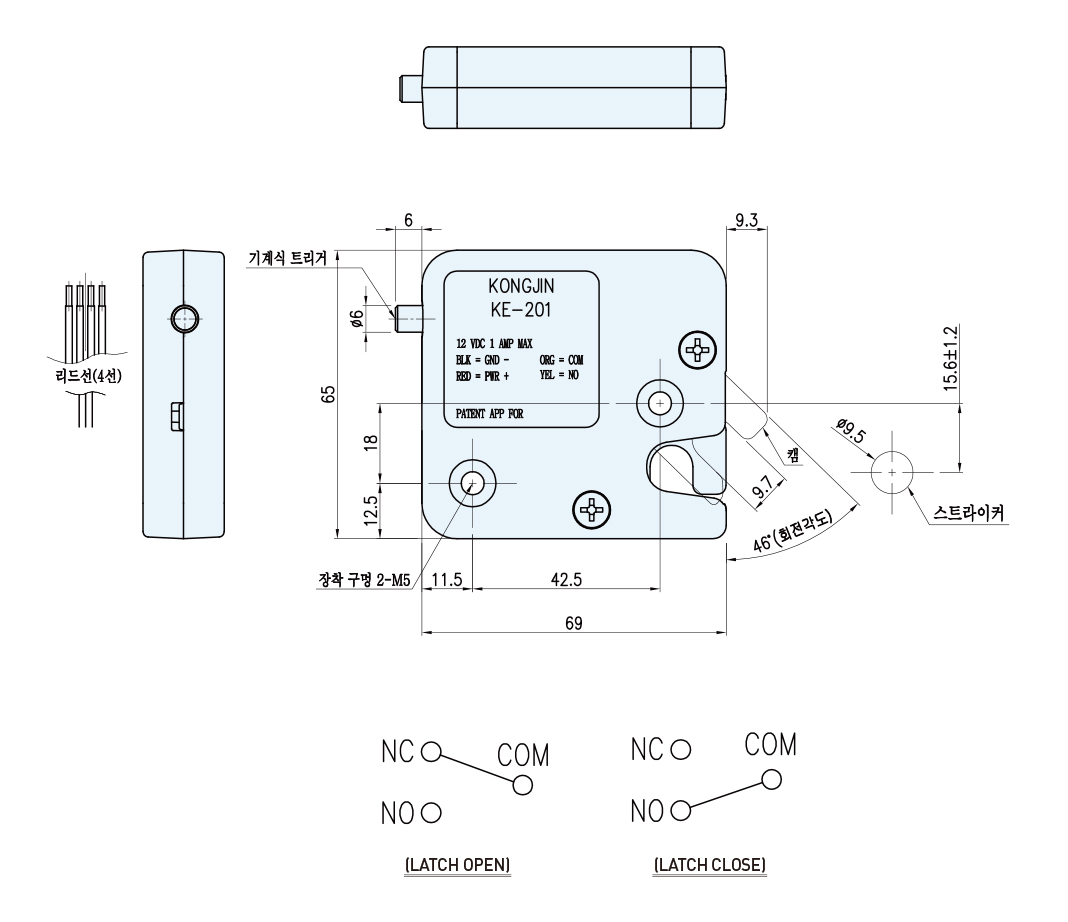

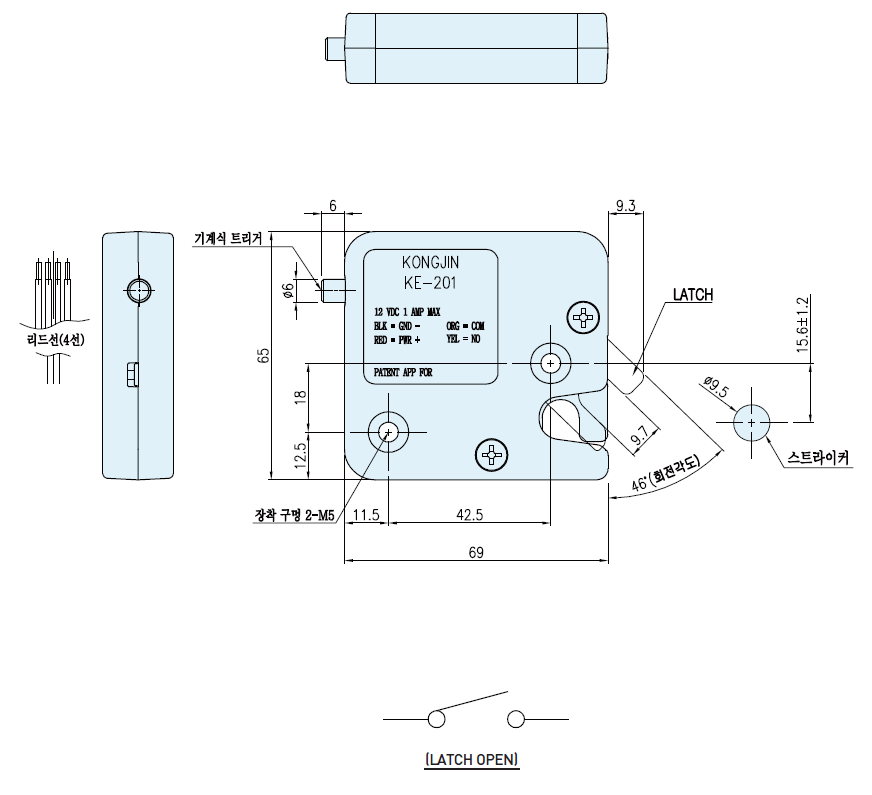

Code Number

KE-201

KA02264



NO.

1

2

3

4

Color

Black

Red

Orange

Yellow

Pin Name

GND

PWR

COM

NO

Pin Description

GND

Power

Relay Base

OPEN
